If it seems like there are security cameras everywhere The Paranoid Conspiracy Theorist's Guide to Online Privacy and Safety The Paranoid Conspiracy Theorist's Guide to Online Privacy and Safety Can You Stay Anonymous Online ? We believe you can do it with little and the use of easy-to-use web-based encryption, security and privacy tools. Let us show you how. Read More Because they are so popular, the average person can now set up a security camera system for just a couple of hundred dollars. Sometimes even less.
When you start looking for a camera system, you will see two types over and over again. There are systems based on the Internet Protocol (IP) How the Internet Works How the Internet Works We can now access the Internet from our home computers, office computers, laptops, and our phones. But many people are still not completely sure what the Internet is and how it really works. Read More What is the difference? What are the pros and cons of these two systems? Even more important, which system is the most secure? Let's see.
There are two main differences; what kind of cameras they use and how the cameras and the recorder communicate with each other, or their networking method. Let's look at the two networking methods first.
An IP-based network requires each device to have its own IP address. An IP address is a bit like a phone number. You call a phone number, you get your friend Jim. That specific phone number will always connect you to Jim. A specific IP address will always connect you to the device that has that IP address.

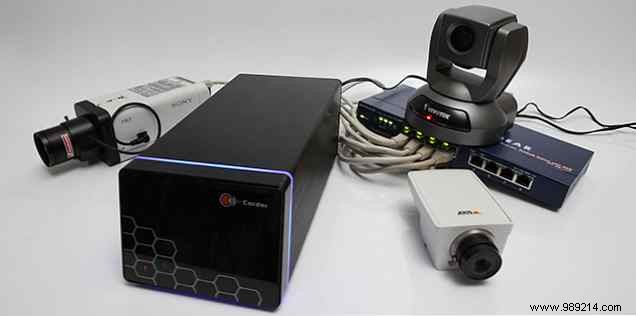

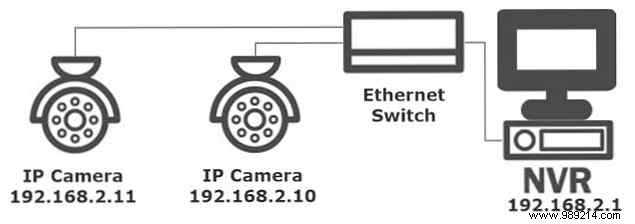

If you have two cameras, camera one could have an IP address like 192.168.2.10 and camera two could be 192.168.2.11. There is usually also a computer in your security system, known as a network video recorder (NVR). It will have its own IP address. Let's say it's 192.168.2.1.
The two cameras and the computer can also connect to each other via WiFi. Remember that, because it becomes important later.
Dropcam Wi-Fi Wireless Video Monitoring Camera, Works with Alexa Dropcam Wi-Fi Wireless Video Monitoring Camera, Works with Alexa Buy Now on Amazon $149.99

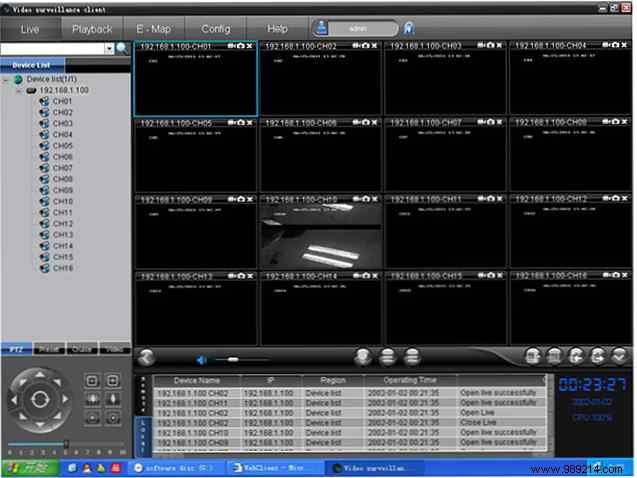

The computer will talk to camera one and two, and camera one and two will respond to the computer using their IP addresses to identify each other. Because each camera has its own IP address, the computer or network video recorder (NVR) knows which images are coming from which camera and keeps them organized properly. Typically, all cameras are connected to an Ethernet switch. What is the difference between routers, hubs, and switches? What is the difference between routers, hubs and switches? Confused about the differences between a hub, a switch, and a router? Don't worry. The answer is actually quite simple. In this article, we break it down for you. Read More
NETGEAR 5-Port Gigabit Ethernet Unmanaged Switch, Sturdy Metal, Desktop, Plug-and-play, ProSAFE Lifetime Protection (GS105NA) NETGEAR 5-Port Gigabit Ethernet Unmanaged Switch, Sturdy Metal, Desktop, Plug-and-Play, ProSAFE Protection Lifetime (GS105NA) Buy Now On Amazon $34.96

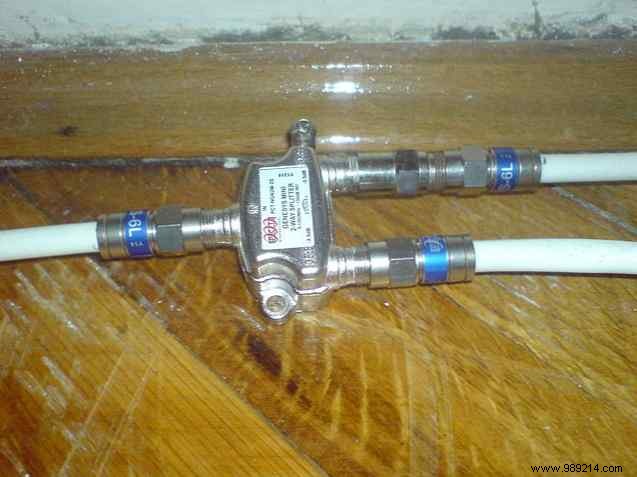

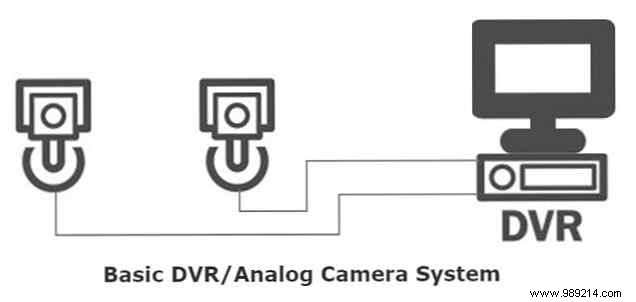

A DVR system uses cameras connected to the recorder by coaxial cables. The DVR itself is a computer, like the NVR, but it has a special type of card, called a video capture card. On Air - Set Up Your Own Online Broadcast On Air - Set Up Your Own Online Broadcast. A new home:PC monitors. Popular commercial services like Netflix and Hulu dominate part of the television market at a time when watching television no longer requires television. Read more . The card will have a connector for each camera. This is how you know which video came from which camera.
The video capture card accepts the analog signal from the cameras and converts it into a digital signal, which is recorded on the hard drive.
4 Channel Video Capture Card 4 Channel Video Capture Card Buy Now on Amazon
Each system typically uses a different type of camera. The IP system uses digital cameras. 5 things you didn't know about early digital cameras. 5 things you didn't know about early digital cameras. The digital camera has taken more than 35 years of technological advancement to reach its current stage of development. The journey from the original concept to all the singer devices we have access to today has been... Read More Makes sense. The DVR system uses analog cameras. How nearly obsolete cameras are lighting up disaster zones. How Nearly Obsolete Cameras Are Bringing Light to Disaster Areas. A house is replaceable. An infection is curable. Hunger is satiable. A lost story is neither of these things. Read More Apart from that, what are the differences between digital and analog cameras?
Surprisingly little.

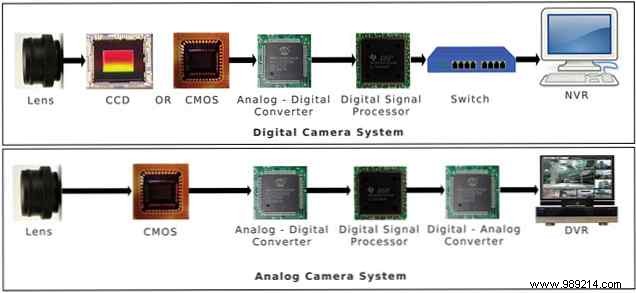

Each type of camera has a lens to capture light and focus it. Each has a light sensor of some kind to convert the light into an analog electronic signal. Both also have an analog to digital converter. From there, the digital signal is sent to a digital signal processor (DSP) 5 things you can do with the Raspberry Pi Camera Module 5 things you can do with the Raspberry Pi Camera Module One of the first expansions you should buy for the Raspberry Pi It is the camera module. With a dedicated connector, the camera can be used for a variety of tasks. We'll see. Read more . That happens in both types of cameras. At this point, the digital camera now sends the signal to the NVR.
This is where one of the big differences comes into play. The analog camera transmits the digital signal to a digital-to-analog converter before sending it over a coaxial cable to the DVR as an analog signal. That's right, it went from analog to digital and then back to analog.
That is the question you came to answer. Let's go for it.
The IP system has the same kind of problems as any computer network. A network failure can cause all your cameras and the NVR to go down. Each of the cameras in a DVR has a direct connection, so failures are mostly limited to individual cameras. Yes, it is possible for the DVR to fail and shut down the entire system as well. However, unlike a data network, the DVR system is passive and requires very little maintenance to keep it running.
If your IP camera network is also connected to your regular network, you may encounter problems like viruses and other malware. This is especially true if your system is connected to the Internet at any time. A DVR system could be connected to the Internet as well and could be subject to attack.
If your IP cameras are connected via WiFi How to make your wireless security cameras untouchable to hackers How to make your wireless security cameras untouchable to hackers In recent months, stories about security vulnerabilities abound. Clearly this is not an acceptable state of affairs. To combat this, you need to secure your security cameras. Let's find out how. Read More That makes it easier to access remotely, however the signal will likely be encrypted. Make sure the system you're looking at does that. DVR cameras connect passively via unencrypted coaxial cable, which makes the signal easier to intercept, but you have to have physical access to the wiring.
Worse, if your IP camera or NVR isn't password protected, it's too easy for someone to touch it directly. Many cameras and systems ship with a default username and password. Make sure to change these immediately! Default usernames and passwords Does your default router configuration make you vulnerable to hackers and scammers? Does your router's default settings make you vulnerable to hackers and scammers? Routers rarely arrive in a secure state, but even if you've taken the time to properly configure your wireless (or wired) router, it may be the weak link. Read More You should do the same with your DVR. However, if the DVR is not connected to any other network, a person would have to be physically at the DVR trying to guess the password.
There is one more thing that gives a DVR a slight advantage. Because many of them are not on the Internet, they are a very small target. Think of it like this; If you were a hacker who wanted to screw up a bunch of cameras, would you go after the ones you can reach via the internet or the ones you would have to be physically in front of? If you wanted to hack with cameras, you would go down the path of least resistance.
Considering that there are sites dedicated to finding vulnerable camera systems. 5 Devices you do NOT want to connect to the Internet of Things. 5 Devices you DO NOT want to connect to the Internet of Things. The Internet of Things (IoT) may not be all that is broken. be. In fact, there are some smart devices that you may not want to connect to the web. Read More
You don't believe me. What about the thousands of DVRs with encrypted passwords? Potentially 55 of the DVRs from the major security camera companies are affected by the issue. Through the web interface, you can log in with the root username and password 519070.
It gets worse. Cloudview put out a report this year showing how easy it is for many [NVRs] to get hacked.
The report goes on to say that, “In more than 15 [NVRs] tested by an independent consultant, none were free of serious vulnerabilities. Some took many hours to break, but most took less than an hour..”
NVRs can be a desirable target due to the processing power of their video cards. Graphics Processing Units (GPUs) in video cards are valued for their ability to mine Bitcoins. NVR systems can often have powerful GPUs. In 2014, the Darlloz Linux worm virus was released to attack Hikvision systems. Johannes B. Ullrich, Ph.D., of the SANS Institute of Technology, identified it as, “...what looks like a bitcoin miner...”.
Hikvision got after the problem immediately and found, “... all virus-infected network cameras connected to the public Internet without changing the default username and password.”
They released a firmware update and security advisories very quickly to ensure their customers could protect themselves. But unless you're constantly checking for updates and advisories, how would you know?
Regardless of which system you go with, the best thing to do is to separate your security camera system from your data network and any possible internet connection. You could think of this as an empty system. God of the Air Gaps:How malware can be spread using the microphone. God of the Air Gaps:How malware can be spread using the microphone. What if I told you that malware can be passed using the Is the medium of computer speakers and microphones unlikely? Read More You may see systems connected to the Internet incorrectly referred to as CCTV, so don't let that label fool you into thinking a particular system is secure.
EZVIZ Smart Home 1080p Security System, 8 Weatherproof 1080p HD Cameras, 1TB HDD 8 Channel DVR, 100ft Night Vision, Work EZVIZ Smart Home 1080p HD Security System, 8 Weatherproof 1080p HD Cameras, 1TB HDD 8CH DVR, 100ft Night Vision, Work Weatherproof, 1TB HDD 8 Channel DVR, 1TB DVt HDD, Working Buy Now on Amazon
Treat the DVR or NVR on your system as you would any other computer on your network. Make sure it is up to date and protected with antivirus and firewall. Windows Defender can now check for malware on startup Windows Defender can now check for malware on startup Windows Defender may not be the best security solution, but Microsoft is working hard to make it relevant. Here's an update you might find valuable. Read More Sign up for the manufacturer's newsletter if you have one. That way, you'll know if there's a firmware update or if a security issue has been discovered. It is in your best interest to let him know right away. After all, they're selling a security product, and if it's not secure, what good is it?
Do you have a security camera system? Or maybe just a single security camera like a Dropcam? You like that? Have you password protected? Did you notice anything weird going on with that? We would like to hear from you.
